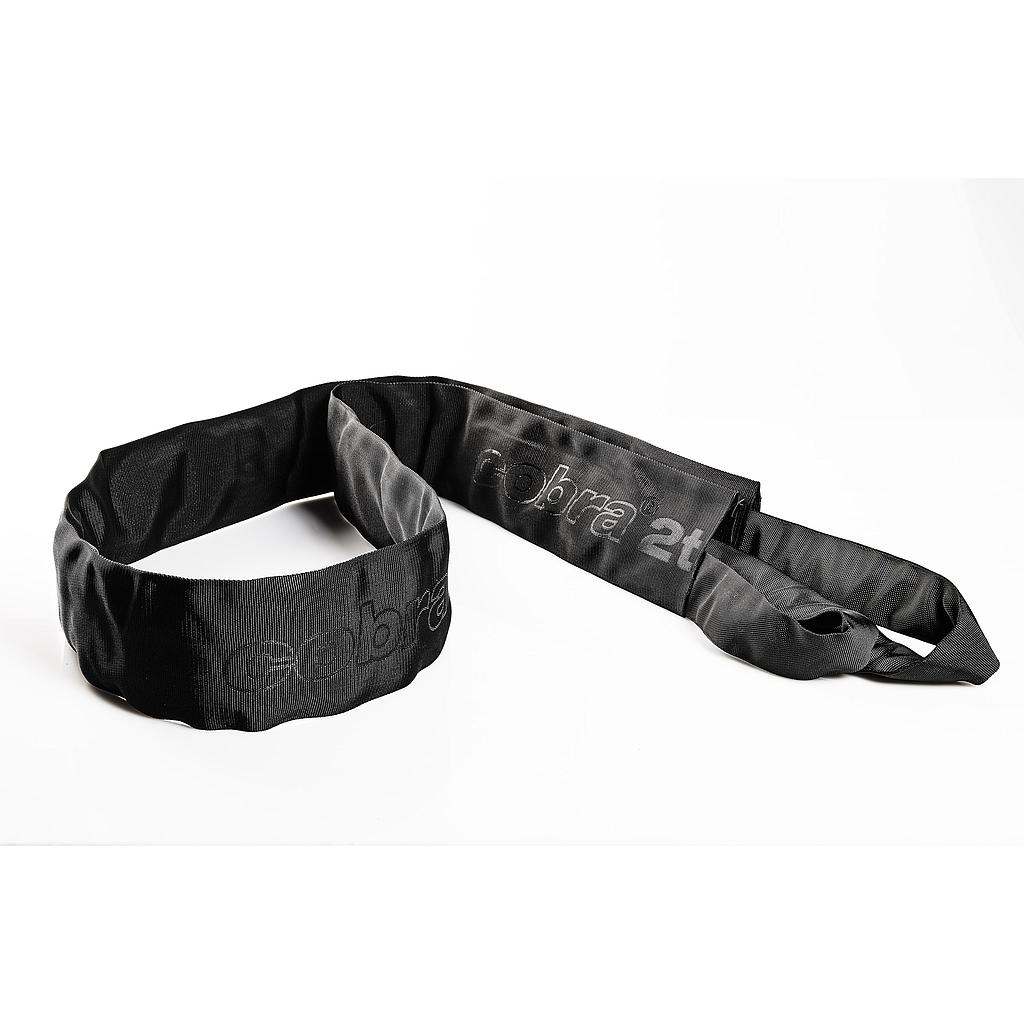

Schlinge cobra ultrastatic XL (2,0 m)
Material (Kern): Dyneema®
Material (Mantel): Textiler Polypropylen (PP) Gewebeschlauch
Abmessungen: Länge: 2000 mm, Breite: 80 mm
einfach: 4.500 daN
doppelt (um Ankerpunkt gelegt): 9.125 daN
Due to the extremely stable Dyneema filaments used, the cobra ultrastatic hollow rope has a very low ultimate ductile yield (2 %) and a very high tensile strength, but at the same time a very small diameter of only 10 mm. Therefore it is not possible to insert a sufficiently broad expanding insert into the cobra ultrastatic cable for appropriately distributing loads. That is why we have deviated from the one-component system principle and have developed a loop for cobra ultrastatic that meets the requirements of the system.
The cobra ultrastatic loop has a high-strength core of fanned-out Dyneema filaments and a single tensile strength of 4.5 t (4,500 daN). When installed, the loop is slung around a stem so that the acting load is distributed among two legs - the tensile strength then is 9 t (9,000 daN).
The cobra ultrastatic loop is available in different lengths, choose the fitting one.
